BGF 金属快速软管防水接头

商品编号:1300800900011
BGF:
BGF-M12(BG10) BGF-M18(BG15) BGF-M20(BG10) BGF-M20(BG12) BGF-M20(BG15) BGF-M20(BG17) BGF-M22(BG17) BGF-M25(BG23) BGF-M25(BG17) BGF-M27(BG23) BGF-M27L(BG23) BGF-M30(BG23) BGF-M32(BG23) BGF-M32(BG29) 其它留言或咨询
购买数量:
+
立即购买
加入购物车
  • 商品名称: BGF 金属快速软管防水接头
  • 品牌:上海日成RCCN
  • 商品毛重:
  • 单位:千克
  • 上架时间:2021-03-22 17:56:02
  • 价格说明:价格为每只
  • 包装说明:包装数量见详情规格表

产品描述:

螺牙规格:公制螺牙(Metric).

产品材质:A.C.F部位均采用锌合金镀镍制成.B.D采用硅橡胶制成。
产品认证:欧洲CE,ROHS.
防护等级:在规定的卡口范围内,并使用O形密封圈旋紧迫紧头,达到IP68。
产品特性:配套锁紧式电缆接头,防电线松动,内锁扣和本体特殊设计,装卸
只需拨插无需工具,大大缩短了安装时间. 夹紧电缆范围大,抗拉

力特强,可防水、防尘、抗盐、耐酸碱、酒精、油、脂及一般溶剂.


产品规格

型号
Item No .
螺纹规格 Thread 最大电缆Cable
Range
Φ

对应日成
软管型号
Suit to RCCN
conduit item no
BG
螺纹外径
Thread
O.D.
D1

机板口径
Panel
Mounting
Hole

螺纹长度
Thread
Length
L1

公制螺牙/Metric thread BGF-M
BGF-M12(BG07) M12*1.5 5 BG-07 12 12-12.3 6
BGF-M12(BG10) M12*1.5 5 BG-10 12 12-12.3 6
BGF-M16(BG07) M16*1.5 8 BG-07 16 16-16.3 7
BGF-M16(BG10) M16*1.5 8 BG-10 16 16-16.3 7
BGF-M18(BG10) M18*1.5 8 BG-10 18 18-18.3 8
BGF-M18(BG12) M18*1.5 10 BG-12 18 18-18.3 8
BGF-M18(BG15) M18*1.5 13 BG-15 18 18-18.3 8
BGF-M20(BG10) M20*1.5 8 BG-10 20 20-20.3 8
BGF-M20(BG12) M20*1.5 10 BG-12 20 20-20.3 8
BGF-M20(BG15) M20*1.5 13 BG-15 20 20-20.3 8
BGF-M20(BG17) M20*1.5 15 BG-17 20 20-20.3 8
BGF-M22(BG17) M22*1.5 15 BG-17 22 22-22.3 9
BGF-M24(BG17) M24*1.5 15 BG-17 24 24-24.3 10
BGF-M25(BG17) M25*1.5 15 BG-17 25 25-25.4 10
BGF-M25(BG23) M25*1.5 21 BG-23 25 25-25.4 10
BGF-M27(BG23) M27*1.5 21 BG-23 27 27-27.4 11
BGF-M30(BG23) M30*1.5 21 BG-23 30 30-30.4 11
BGF-M32(BG23) M32*1.5 21 BG-23 32 32-32.4 11
BGF-M32(BG29) M32*1.5 25 BG-29 32 32-32.4 11
BGF-M33(BG29) M33*1.5 25 BG-29 33 33-33.4 11
BGF-M36(BG29) M36*1.5 25 BG-29 36 36-36.4 11
BGF-M40(BG29) M40*1.5 25 BG-29 40 40-40.4 12
BGF-M40(BG36) M40*1.5 33 BG-36 40 40-40.4 12
BGF-M48(BG36) M48*2.0 33 BG-36 48 48-48.4 12
BGF-M50(BG36) M50*1.5 33 BG-36 50 50-50.4 13
BGF-M50(BG48) M50*1.5 45 BG-48 50 50-50.4 13
BGF-M56(BG48) M56*2.0 45 BG-48 56 56-56.4 13
BGF-M63(BG48) M63*1.5 45 BG-48 63 63-63.4 14

型号
Item No .
螺纹规格
Thread
适应电缆
Cable
Range

对应日成
软管型号
BG

螺纹外径Thread
O.D.
D1
机板口径Panle
Mounting
Hole
螺纹长度
Thread
Length
L1
德制螺牙BGF-P
BGF-PG7(BG07) PG-7 3-6 BG-07 12.5 12.5-12.8 6
BGF-PG9(BG07) PG-9 4-8 BG-07 15.2 15.2-15.8 7
BGF-PG9(BG10) PG-9 4-8 BG-10 15.2 15.2-15.8 7
BGF-PG11(BG10) PG-11 6-10 BG-10 18.6 18.6-18.9 8
BGF-PG11(BG12) PG-11 6-10 BG-12 18.6 18.6-18.9 8
BGF-PG13.5(BG12) PG-13.5 8-12 BG-12 20.4 20.4-20.7 8
BGF-PG13.5(BG15) PG-13.5 8-12 BG-15 20.4 20.4-20.7 8
BGF-PG13.5(BG17) PG-13.5 8-12 BG-17 20.4 20.4-20.7 8
BGF-PG16(BG17) PG-16 10-14 BG-17 22.5 22.5-22.8 9
BGF-PG21(BG23) PG-21 13-18 BG-23 28.3 28.3-28.7 11
BGF-PG29(BG29) PG-29 18-25 BG-29 37.0 37.0-37.4 11
BGF-PG36(BG36) PG-36 26-32 BG-36 47.0 47.0-47.4 13
BGF-PG48(BG48) PG-48 37-44 BG-48 59.3 59.3-59.7 14
管螺牙BGF-G
BGF-G1/4(BG07) G1/4'' 3-6 BG-07 13.2 13.2-13.4 6
BGF-G3/8(BG10) G3/8'' 4-8 BG-10 16.5 16.5-17.1 7
BGF-G1/2(BG12) G1/2'' 8-12 BG-12 21.3 21.0-21.3 8
BGF-G1/2(BG15) G1/2'' 8-12 BG-15 21.3 21.0-21.3 8
BGF-G1/2(BG17) G1/2'' 8-12 BG-17 21.3 21.0-21.3 8
BGF-G3/4(BG17) G3/4'' 13-18 BG-17 26.6 26.5-26.6 11
BGF-G1(BG23) G1'' 15-22 BG-23 33.4 33.2-33.4 11
BGF-G1-1/4(BG29) G1 1/4'' 22-28 BG-29 42.1 41.9-42.1 12
BGF-G1-1/2(BG36) G1 1/2'' 26-32 BG-36 47.8 47.8-48.0 13
BGF-G2(BG48) G2'' 37-44 BG-48 59.6 59.6-60.1 14
美制螺牙BGF-N
BGF-NPT3/8(BG10) NPT3/8'' 4-8 BG-10 16.5 16.5-17.1 7
BGF-NPT1/2(BG12) NPT1/2'' 8-12 BG-12 21.3 21.0-21.3 8
BGF-NPT1/2(BG15) NPT1/2'' 8-12 BG-15 21.3 21.0-21.3 8
BGF-NPT1/2(BG17) NPT1/2'' 8-12 BG-17 21.3 21.0-21.3 8
BGF-NPT3/4(BG17) NPT3/4'' 13-18 BG-17 26.6 26.5-26.6 11
BGF-NPT3/4(BG23) NPT3/4'' 13-18 BG-23 26.6 26.5-26.6 11
BGF-NPT1(BG29) NPT1'' 15-22 BG-29 33.4 33.2-33.4 11

 下表型号为黄铜材质:

型号
Item No .
螺纹规格Thread 最大电缆
Cable
Range
Φ
对应日成
软管型号
BG

对应日成
软管外径
BG

螺纹外径Thread
O.D.
D1
机板口径Panle
Mounting
Hole
螺纹长度Thread
Length
L1
公制螺公制螺牙BGF-M
BGF1-M12(BG07) M12*1.5 5 BG-07 10.0 12 12-12.3 6
BGF1-M12(BG10) M12*1.5 5 BG-10 13.0 12 12-12.3 6
BGF1-M16(BG07) M16*1.5 8 BG-07 10.0 16 16-16.3 7
BGF1-M16(BG10) M16*1.5 8 BG-10 13.0 16 16-16.3 7
BGF1-M18(BG10) M18*1.5 8 BG-10 13.0 18 18-18.3 8
BGF1-M18(BG12) M18*1.5 10 BG-12 15.8 18 18-18.3 8
BGF1-M18(BG15) M18*1.5 13 BG-15 18.5 18 18-18.3 8
BGF1-M20(BG10) M20*1.5 8 BG-10 13.0 20 20-20.3 8
BGF1-M20(BG12) M20*1.5 10 BG-12 15.8 20 20-20.3 8
BGF1-M20(BG15) M20*1.5 13 BG-15 18.5 20 20-20.3 8
BGF1-M20(BG17) M20*1.5 15 BG-17 21.2 20 20-20.3 8
BGF1-M22(BG17) M22*1.5 15 BG-17 21.2 22 22-22.3 9
BGF1-M24(BG17) M24*1.5 15 BG-17 21.2 24 24-24.3 10
BGF1-M25(BG17) M25*1.5 15 BG-17 21.2 25 25-25.4 10
BGF1-M25(BG23) M25*1.5 21 BG-23 28.5 25 25-25.4 10
BGF1-M27(BG23) M27*1.5 21 BG-23 28.5 27 27-27.4 11
BGF1-M30(BG23) M30*1.5 21 BG-23 28.5 30 30-30.4 11
BGF1-M32(BG23) M32*1.5 21 BG-23 28.5 32 32-32.4 11
BGF1-M32(BG29) M32*1.5 25 BG-29 34.5 32 32-32.4 11
BGF1-M33(BG29) M33*1.5 25 BG-29 34.5 33 33-33.4 11
BGF1-M36(BG29) M36*1.5 25 BG-29 34.5 36 36-36.4 11
BGF1-M40(BG29) M40*1.5 25 BG-29 34.5 40 40-40.4 12
BGF1-M40(BG36) M40*1.5 33 BG-36 42.5 40 40-40.4 12
BGF1-M48(BG36) M48*2.0 33 BG-36 42.5 48 48-48.4 12
BGF1-M50(BG36) M50*1.5 33 BG-36 42.5 50 50-50.4 13
BGF1-M50(BG38) M50*1.5 45 BG-38 54.5 50 50-50.4 13
BGF1-M56(BG38) M56*2.0 45 BG-38 42.5 56 56-56.4 13
BGF1-M63(BG38) M63*1.5 45 BG-38 54.5 63 63-63.4 14

型号
Item No .
螺纹规格Thread 适应电缆
Cable
Range

对应日成
软管型号
BG

对应日成
软管外径
BG

螺纹外径Thread
O.D.
D1
机板口径Panle
Mounting
Hole
螺纹长度Thread
Length
L1
德制螺牙BGF-P
BGF1-PG7(BG07) PG-7 3-6 BG-07 10.0 12.5 12.5-12.8 6
BGF1-PG9(BG07) PG-9 4-8 BG-07 10.0 15.2 15.2-15.8 7
BGF1-PG9(BG10) PG-9 4-8 BG-10 13.0 15.2 15.2-15.8 7
BGF1-PG11(BG10) PG-11 6-10 BG-10 13.0 18.6 18.6-18.9 8
BGF1-PG11(BG12) PG-11 6-10 BG-12 15.8 18.6 18.6-18.9 8
BGF1-PG13.5(BG12) PG-13.5 8-12 BG-12 15.8 20.4 20.4-20.7 8
BGF1-PG13.5(BG15) PG-13.5 8-12 BG-15 18.5 20.4 20.4-20.7 8
BGF1-PG13.5(BG17) PG-13.5 8-12 BG-17 21.2 20.4 20.4-20.7 8
BGF1-PG16(BG17) PG-16 10-14 BG-17 21.2 22.5 22.5-22.8 9
BGF1-PG21(BG23) PG-21 13-18 BG-23 28.5 28.3 28.3-28.7 11
BGF1-PG29(BG29) PG-29 18-25 BG-29 34.5 37.0 37.0-37.4 11
BGF1-PG36(BG36) PG-36 26-32 BG-36 42.5 47.0 47.0-47.4 13
BGF1-PG48(BG48) PG-48 37-44 BG-48 54.5 59.3 59.3-59.7 14
管螺牙BGF-G
BGF1-G1/4(BG07) G1/4'' 3-6 BG-07 10.0 13.2 13.2-13.4 6
BGF1-G3/8(BG10) G3/8'' 4-8 BG-10 13.0 16.5 16.5-17.1 7
BGF1-G1/2(BG12) G1/2'' 8-12 BG-12 15.8 21.3 21.0-21.3 8
BGF1-G1/2(BG15) G1/2'' 8-12 BG-15 18.5 21.3 21.0-21.3 8
BGF1-G1/2(BG17) G1/2'' 8-12 BG-17 21.2 21.3 21.0-21.3 8
BGF1-G3/4(BG17) G3/4'' 13-18 BG-17 21.2 26.6 26.5-26.6 11
BGF1-G1(BG23) G1'' 15-22 BG-23 28.5 33.4 33.2-33.4 11
BGF1-G1-1/4(BG29) G1 1/4'' 22-28 BG-29 34.5 42.1 41.9-42.1 12
BGF1-G1-1/2(BG36) G1 1/2'' 26-32 BG-36 42.5 47.8 47.8-48.0 13
BGF1-G2(BG48) G2'' 37-44 BG-48 54.5 59.6 59.6-60.1 14
美制螺牙BGF-N
BGF1-NPT3/8(BG10) NPT3/8'' 4-8 BG-10 10.0 16.5 16.5-17.1 7
BGF1-NPT1/2(BG12) NPT1/2'' 8-12 BG-12 15.8 21.3 21.0-21.3 8
BGF1-NPT1/2(BG15) NPT1/2'' 8-12 BG-15 18.5 21.3 21.0-21.3 8
BGF1-NPT1/2(BG17) NPT1/2'' 8-12 BG-17 21.2 21.3 21.0-21.3 8
BGF1-NPT3/4(BG17) NPT3/4'' 13-18 BG-17 21.2 26.6 26.5-26.6 11
BGF1-NPT3/4(BG23) NPT3/4'' 13-18 BG-23 28.5 26.6 26.5-26.6 11
BGF1-NPT1(BG29) NPT1'' 15-22 BG-29 34.5 33.4 33.2-33.4 11

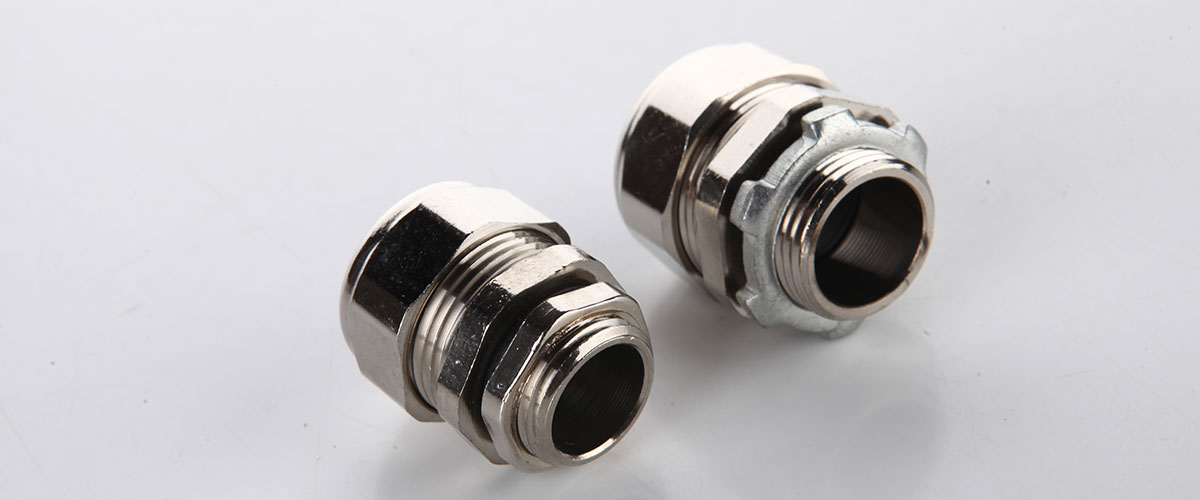

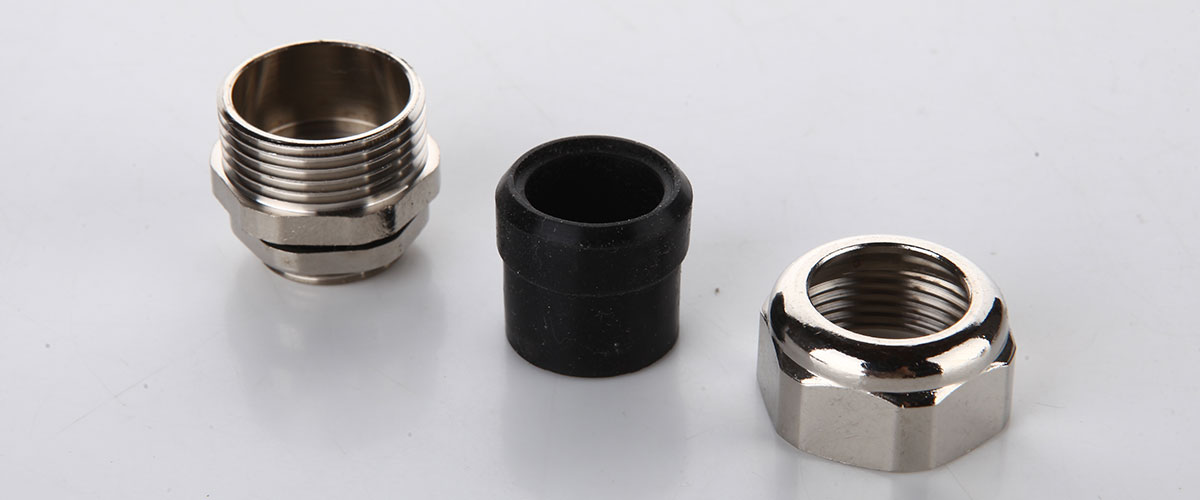

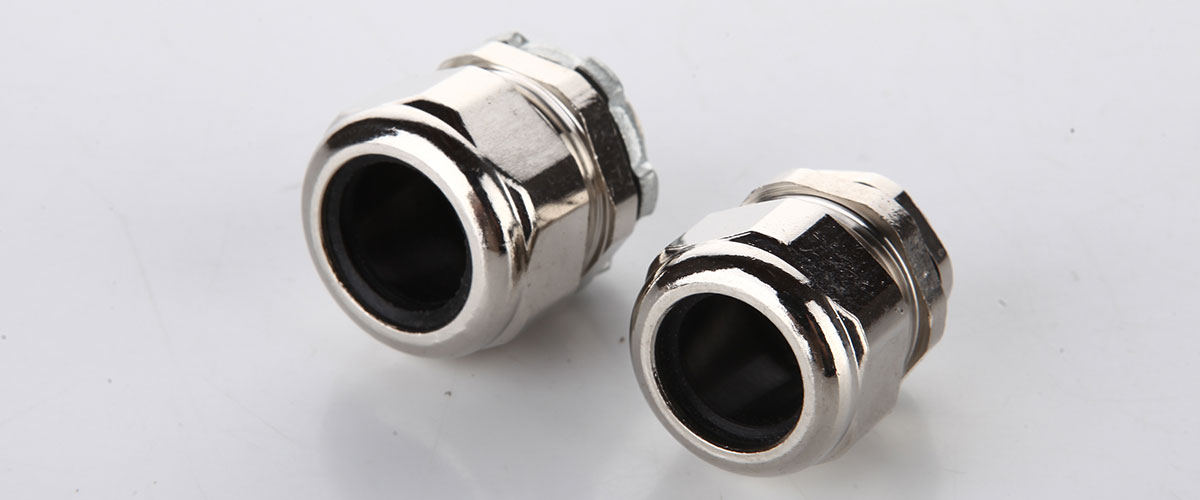

图片介绍
